ESD/Partial Stroke Test
3.450,00 €
Product Description

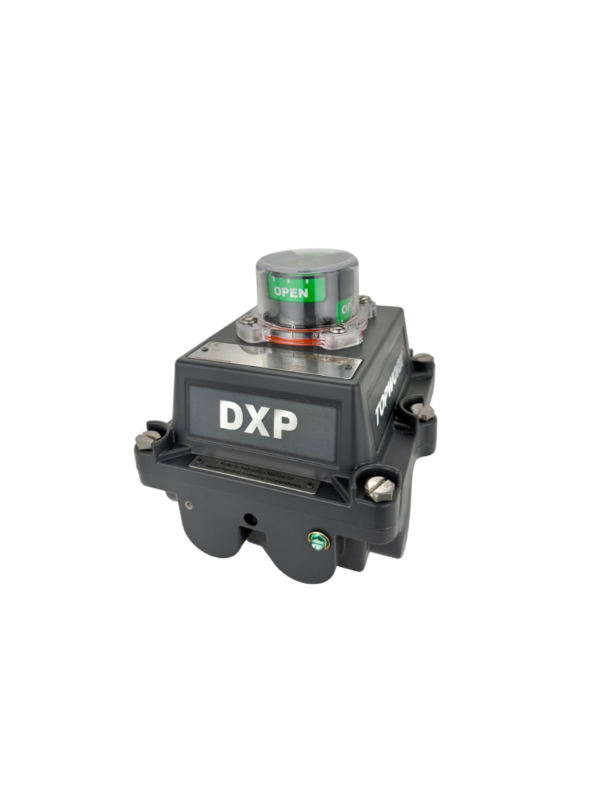

Make: TopWorx
Type: DXP-ES1GN4S000TN
Operating temperature range: -50°C to +75°C (@T5)
DXP aluminum housing, A360, epoxy dichromate coating
ES ESD/Partial Stroke Test Module with (1) GO Switch
1 Protection class: Explosionproof/ Flameproof;
. Ex db IIB + H2 T6/T5/T4 Gb; -50°C≤ Ta ≤ 60°C/75°C/110°C
. Ex tb IIIC T85°C/T100°C/T135°C Db; -50°C≤ Ta ≤ 60°C/75°C/110°C;
. IP66/67
. Electrical Rating: 250mA/24VDC, 120VAC;
G Visual indicator (Raised Dome) 90° Green/Red (OPEN/CLOSED)
N Shaft according to Namur, material: SS316
4 Cable inlet 2x ¾” NPT & 2x ½” NPT
S Seals (O-rings) made of silicone
000T Partial stroke test button with lockable cover
N CCC Ex
