1/4 solenoid valve EEia, 3/2
915,00 €
Product Description

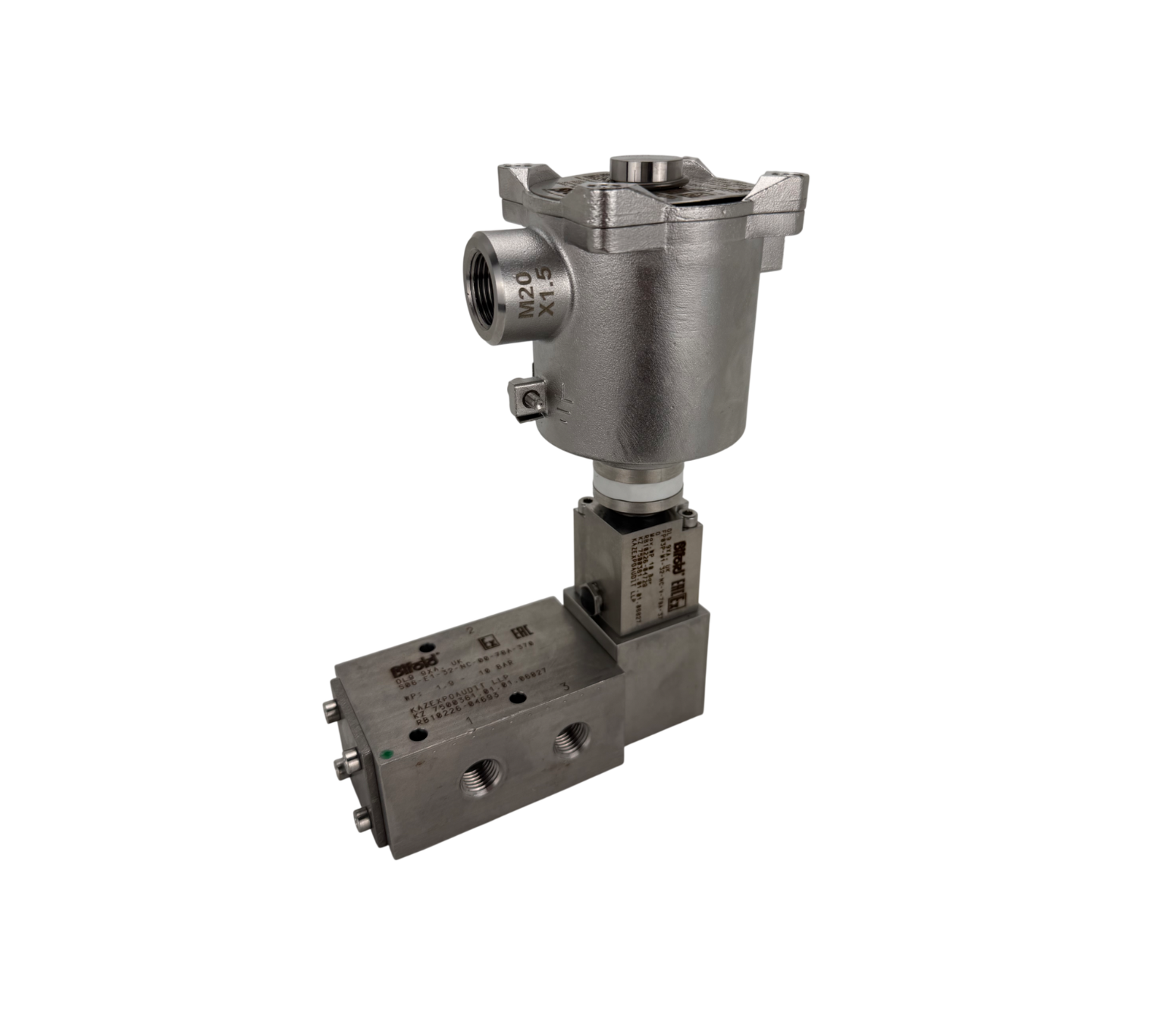

Solenoid valve 1/4″ NPT
Manufacture: Bifold
Operating pressure: 1-10 bar(g)
Material: SS316L
Temperature range: -20°C to +60°C (T6)
S06 Series, 1/4″ NPT connection
E1 Internal Pilot – Auto Reset
32 3 ways, 2 positions
NC Normally closed
00 Spring return
78A Protection class: ATEX/IECEx II I GD Ex ia IIC T6 Ga
370 Coil resistance 370 Ohm
. (Minimum current @ solenoid coil = 32 mA)
Download all relevant documents and certificates for the product here.
