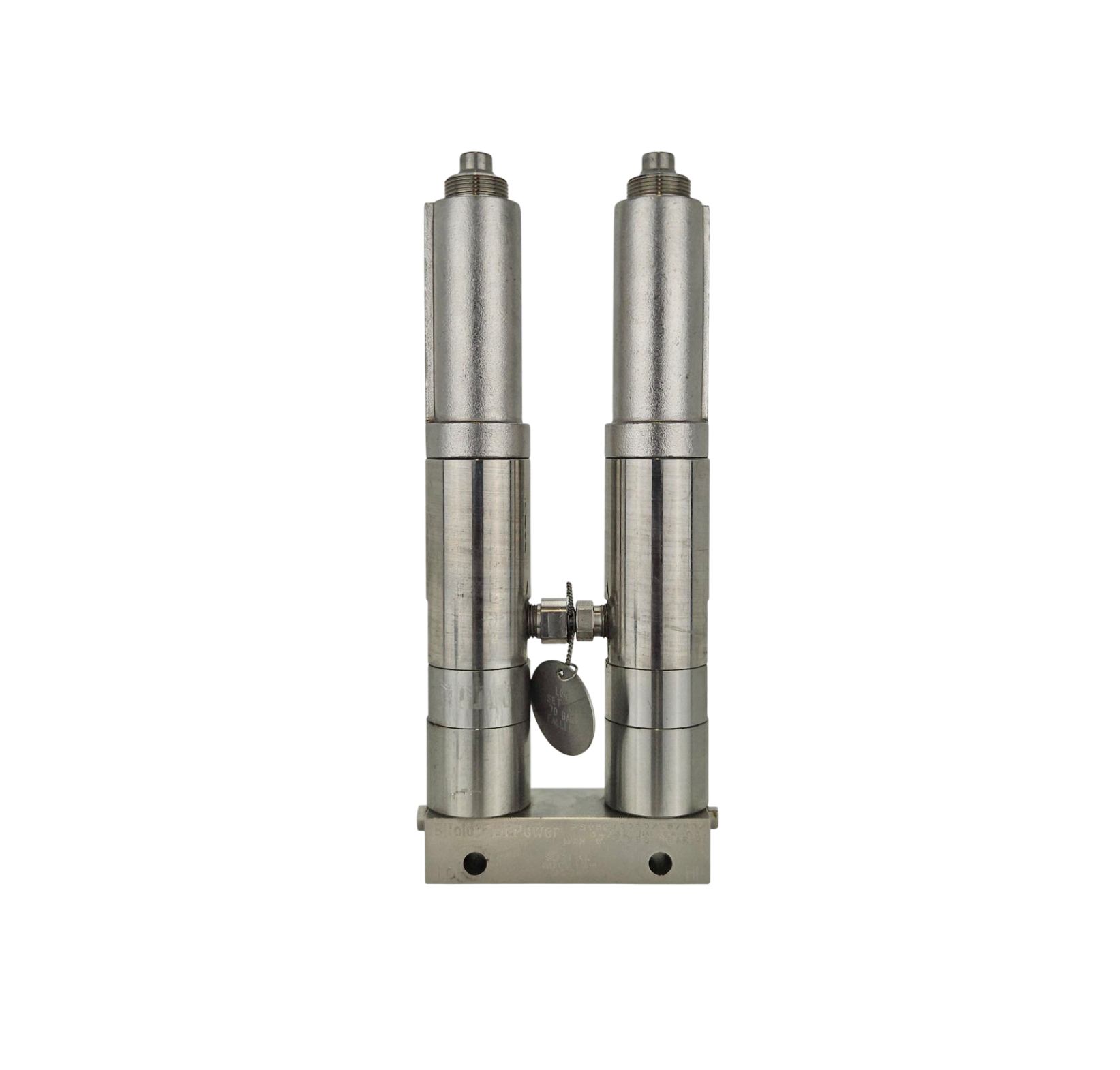

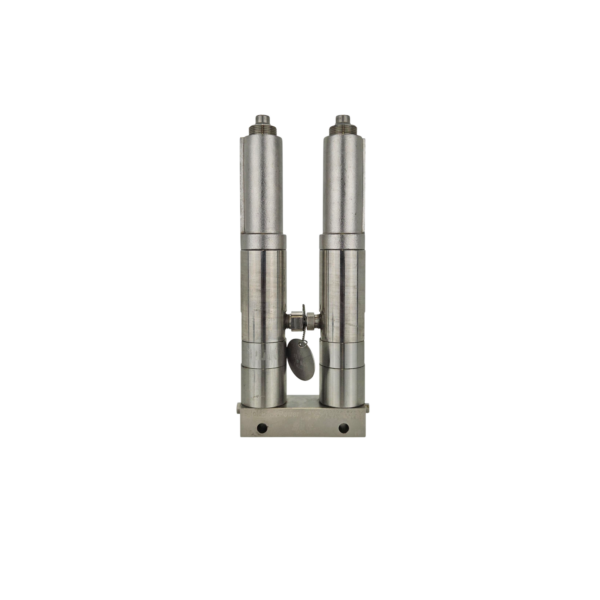

Pilot valve – Hi/Lo
Product Description
Pilot valve 1/4″ NPT
Fabric: Bifold
Material: SS316L
Valve: max. 10 bar
Pilot max: 750bar
Operating temperature range: -50°C to +40°C
PSV5E series (without adjusting nut for locking)
0010 Control pressure 0-10 bar
L5 Lo-Pilot – falling 25-95 bar
H3 Hi-Pilot – rising 80-300 bar
04 Connections 1/4″ NPT
32 3 ways / 2 positions
NU Normally Universal
SA Nitrile O-rings
*
Please specify the required setting pressure when ordering
