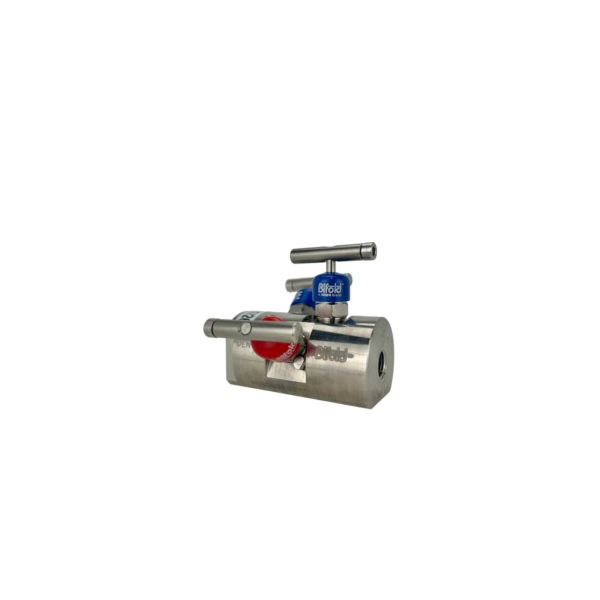

Block & Bleed Manifold 1/4″ NPT
304,00 €
Product Description
Block & bleed valve 1/4″ NPT
Make: Bifold Fluidpower
Operating temperature range: -20°C to +180°C
NV05 Double Block & Bleed Manifold
04 1/4″ NPT connection
F Thread design: Female thread
02 Material; UNS S31600 / S31603 Stainless Steel
M Tip: Metal Ball
5 Through-hole Ø 5mm
V Viton elastomer seal
10K 10,000 psi / 690 bar max. working pressure (cold)
Download all relevant documents and certificates for the product here.
