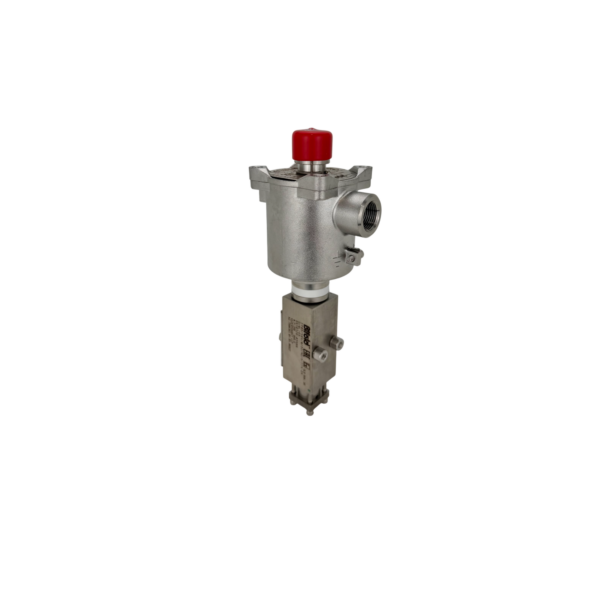

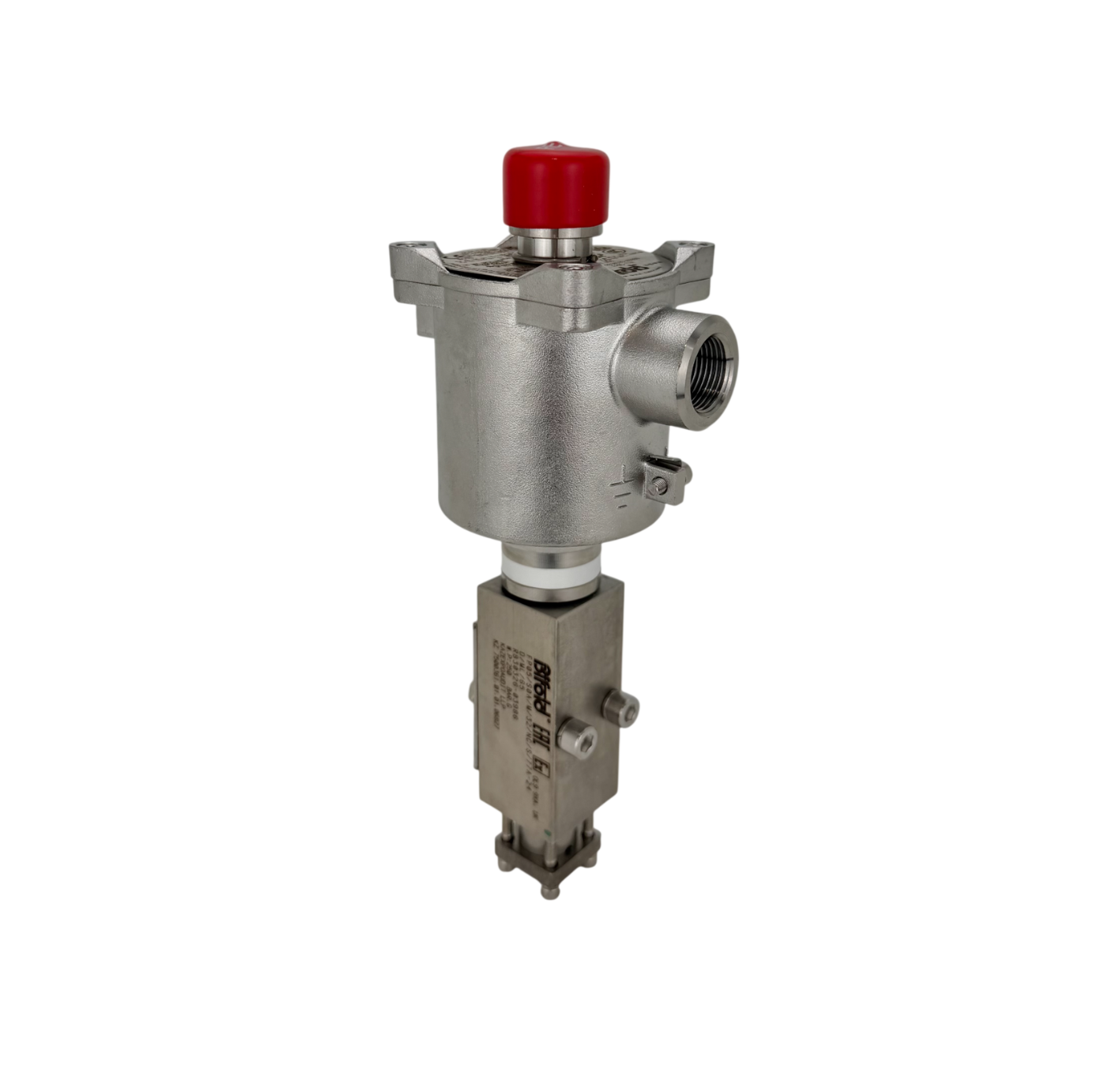

3/2 way solenoid valve, 5 lpm
1.213,00 €
Product Description
Solenoid valve FP05 / 5lpm
Make: Bifold
Material: SS316L
Operating temperature range: -30°C to +40°C (@T6)
Flow rate: 5 lpm
FP05 valve series FP05, 5lpm flow
S0A max. 250bar working pressure
M Subbase mount (flange connection)
32 3-way, 2-position
NC Normally Closed
S Nitrile seals (-30°C to +130°C)
77A Protection class: ATEX/IECEx, Ex d IIC Gb, Ex tb IIIC Db T4/5/6
24D Power supply 24V DC
ML Manual Latch (local reset)
65 Power consumption 6.5Watt
Download all relevant documents and certificates for the product here.
