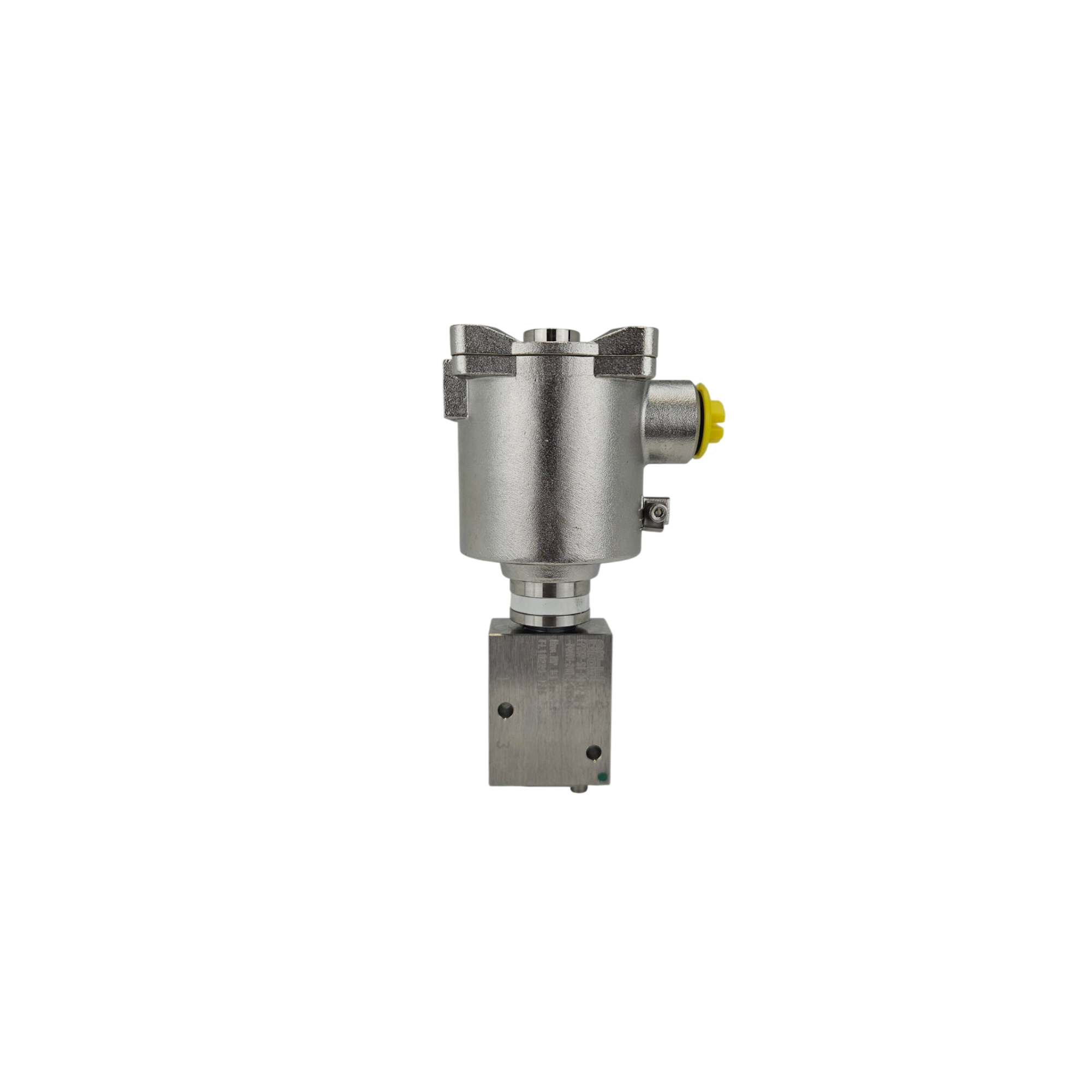

1/4 solenoid valve EExd
502,00 €
Product Description
Manufacture: Bifold
Material: SS316L
Operating pressure: 0-10 bar(g)
Operating temperature range: -20°C to +50°C (@T4)
Cv: 0.4
FP06P Series (direct acting)
S1 Actuator: Solenoid coil
04 1/4″ NPT-F Connections
32 3 ways, 2 positions
NU Normally universal ( 1->2 = NC / 3 ->2 = NO )
V Viton O-rings
74AT4 Protection class: ATEX/IECEx, Ex emb IIC T4 Gb
. Ex tD IIIC A21 T120°C Db
24D Power supply 24V DC
36 Power consumption 3.6 Watt
K85 Cable inlet 1/2 “NPT
Download all relevant documents and certificates for the product here.
