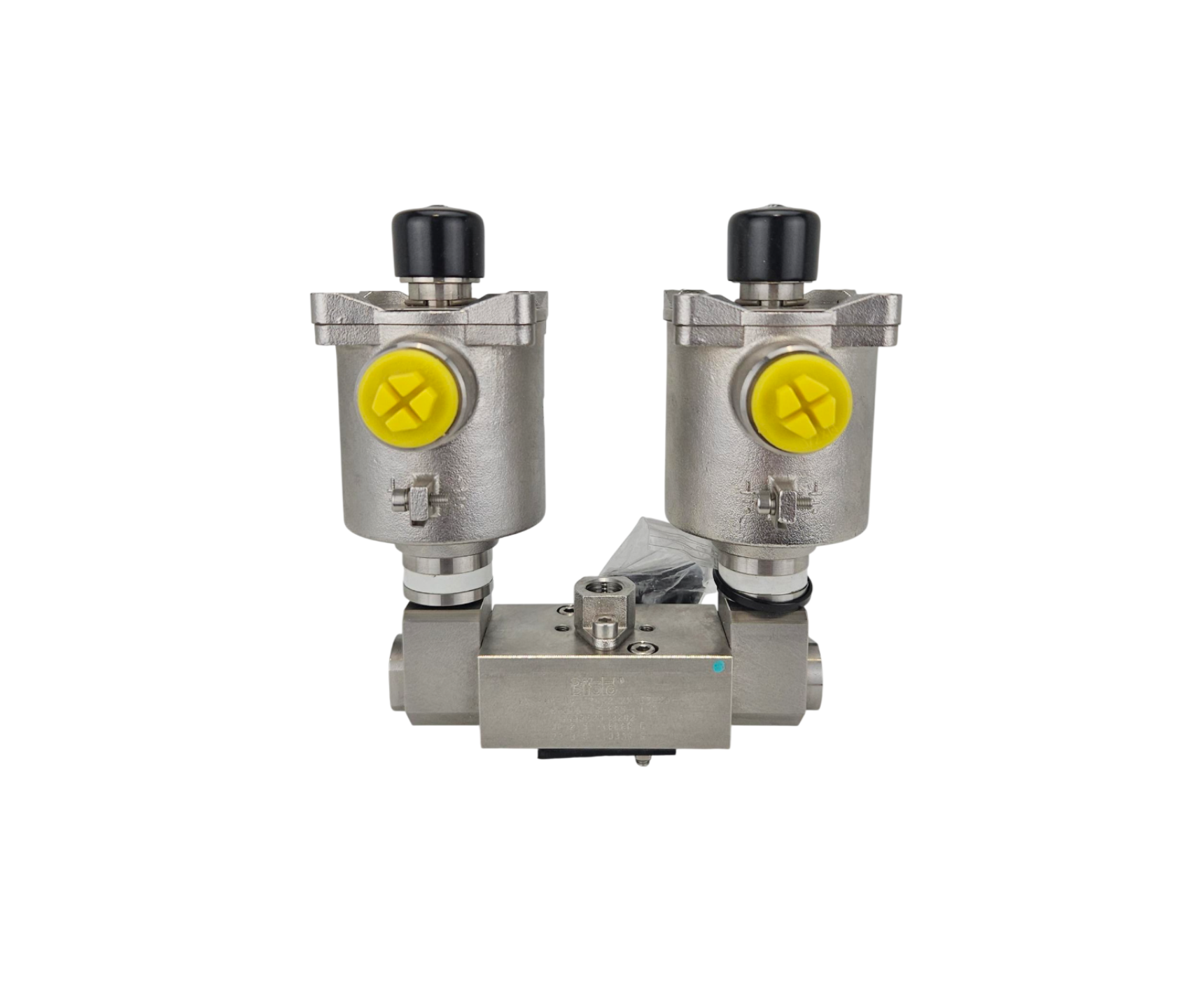

1/4″ solenoid valve, Ex d, NAMUR / NEPSI
Product Description
Manufacture: Bifold
Material: SS316L
Operating pressure: 1-10 bar(g)
Operating temperature range: -25°C to +40°C (@T6)
CV: 0.73
BXS-04 Series, 1/4″ Body
N4 NAMUR Connection
E3 M – Manual override – Internal pilot
52 5 ways, 2 positions
XX Configuration
E3 M – Manual override – Internal pilot
SA Nitrile – Low temperature (-25°C to +130°C)
77N Protection class: NEPSI/IECEx, Ex d IIC Gb, DIP A2I Db T4/5/6
24D Power supply 24V DC
18 Power consumption 1.8 watts
K85 Cable input 1/2″ NPT
L142 Banjo design (rotating solenoid coil)
Download all relevant documents and certificates for the product here.
