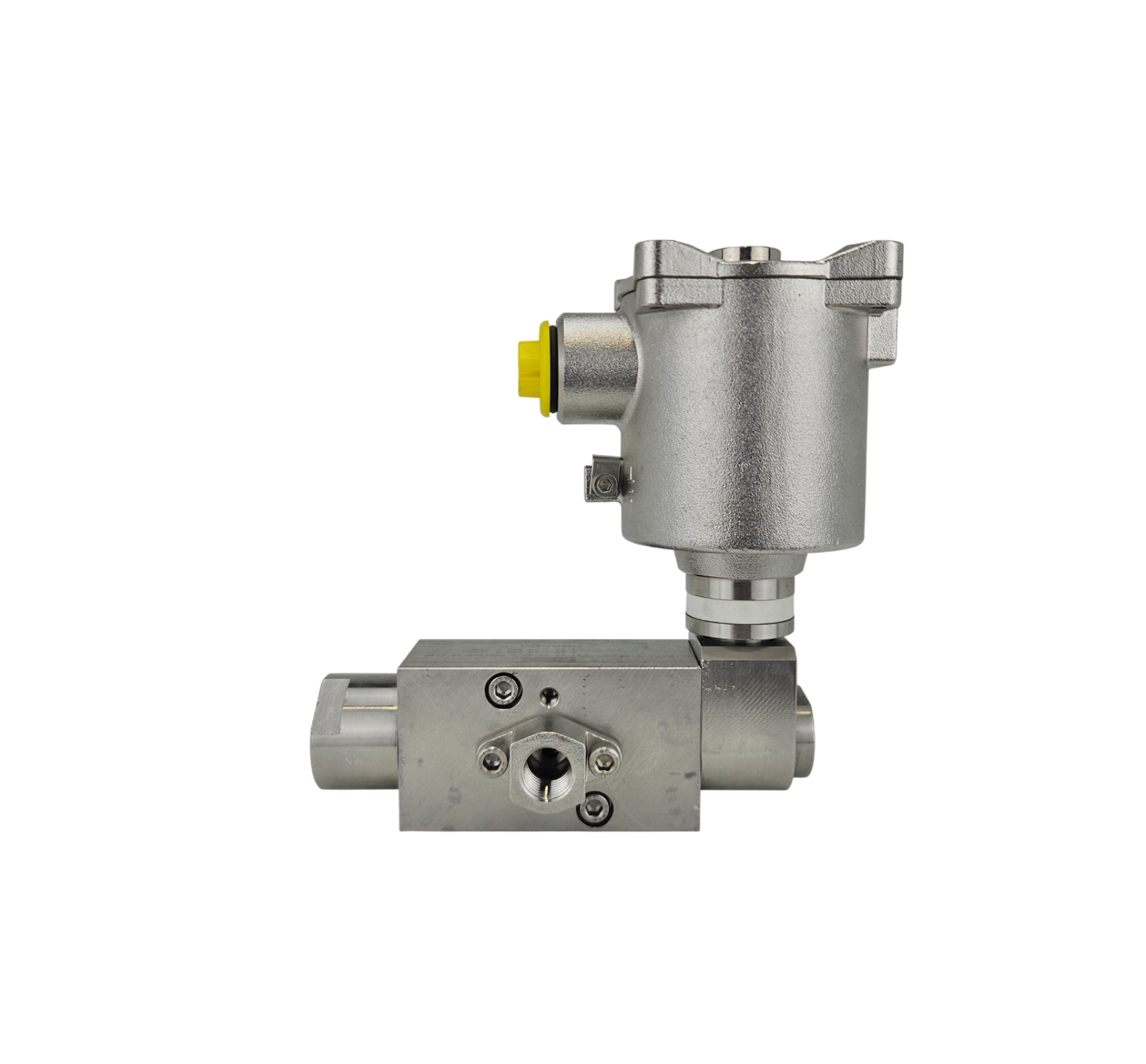

1/4″ solenoid valve, Ex d, NAMUR
946,00 €
Product Description
Control valve NAMUR
Manufacture: Bifold
Material: SS316L
Operating pressure: 1-10 bar(g)
Operating temperature range: -15°C to +90°C (@T4)
CV: 0.73
BXS-04 Series, 1/4″ body
N4 NAMUR connection
E1 Internal pilot (auto reset)
52 5 ways, 2 positions
XX Configuration
00 Spring return
V Viton seals (-15°C to +130°C)
77A Protection class: ATEX/IECEx, Ex d IIC Gb, Ex tb IIIC Db T4/5/6
24D Power supply 24V DC
30 Power consumption 3.0 watts
Download all relevant documents and certificates for the product here.
